| Model | ZL38-10 | ||||||||
| Working Voltage Range | DC：6-24V （If solar photovoltaic panel is used for power supply, parameters shall be provided: rated voltage, open circuit voltage, short circuit current） | ||||||||
| Rating Power | 6V：2-12WW / 12V：3-18W / 24V：5-25W | ||||||||

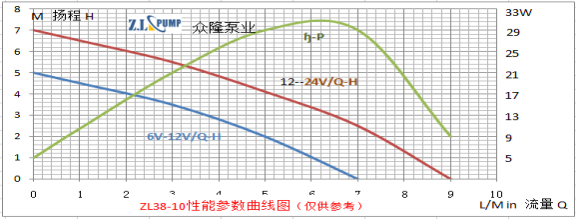

| Static Water Head | 1-7M | ||||||||
| Static flow rate | 3-9Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | 適用液體PH value：Weak acid, neutral, weak base。non-Submersible pump | ||||||||
| Max Noise | Normal working condition, the water pump is 1 meter away from the tester<40dB | ||||||||
| Max Working Temperature | Normal startup delay 5-20 seconds；Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Solar hot water circulation、Medical equipment, small fountains, aquariums, etc. | ||||||||

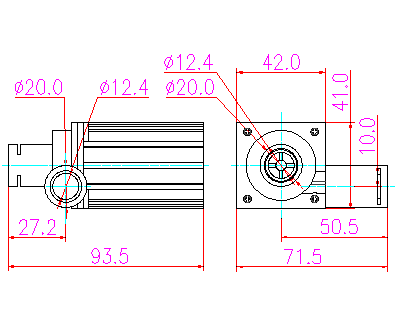

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (mm) | ID (mm) | OD (mm) | ID (mm) | Inlet and outlet buckle | ||
| 71.5 | 41 | 93.5 | IP67 | φ20 | φ12.4 | φ20 | φ12.4 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
